Highly Miniaturized and Compact GPS-GSM vehicle Tracker

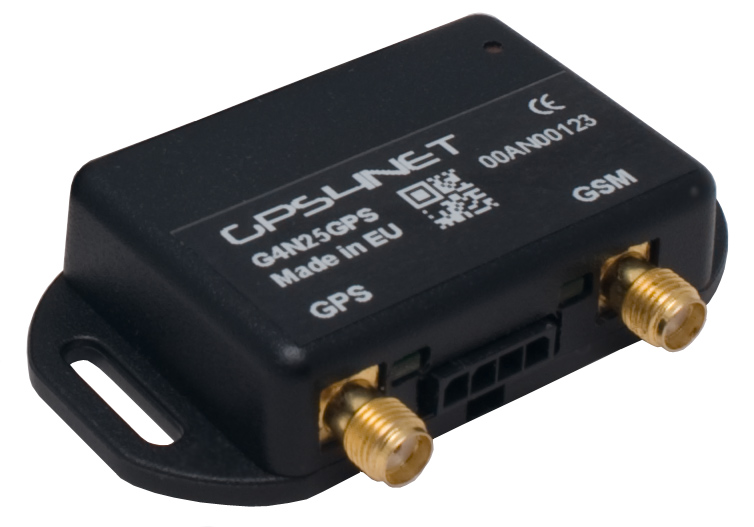

G4N25GPS is one of the smallest GPS trackers available on the market. The hardware is based on the Platform2 and therefore providing the same powerful software features but for a lower acquisition cost.
Thus the G4N25GPS provides the same iButton authentication engine for 2000 tags. The reduced dimension offer great advantages for a fast installation and for various tracking applications such as anti-hijacking, car-sharing, auto-leasing or personnel time-tracking.
The setup and configuration of the device is provided over SMS and GPRS by using the RDT (Remote Diagnosis Tool) and the GPS4NET central configuration portal. Thus all devices are preset with fall-over settings for remote restoration of the configuration in case of misconfiguration or failure.
|GPS reception||2.5 m precision, 65 channels GPS receiver. Compatible with EGNOS and GALILEO.|
|GSM communication||SMS & GPRS class 10 ( 85,6 kbps ). External Antenna.|
|I/O||4 pins multipole connector with ESD protection.
2 ports configurable: Analog / Digital input, personnel authentication with iButton, 1A pull-up output.
|System||Automotive grade processor
RTC (Real Time Clock) syncronized by GPS
2 bi-colored LED status for GSM, GPS
G4N-RTOS - proprietary Real Time Operating System
8 – 40 VDc input range
Power management & wake-up events and triggers
Small size 50x35x15 mm
Temperature range -30~+85C
|Service||The device has configuration functions over SMS and supports firmware upgrade over GPRS.
First made setup is available only over SMS. Full remote administration over GPRS.
|Standard packaging||The product is delivered with GPS antenna, GSM antenna, I/O cable, connection clips.
*Devices are not delivered with a SIM card. This can be obtained from the customer's favorite GSM operator.
|Options||Vehicle imobilized. Personnel authentication reader (iButton). Motion sensor.
*Due to the permanent development this list might change periodically.
